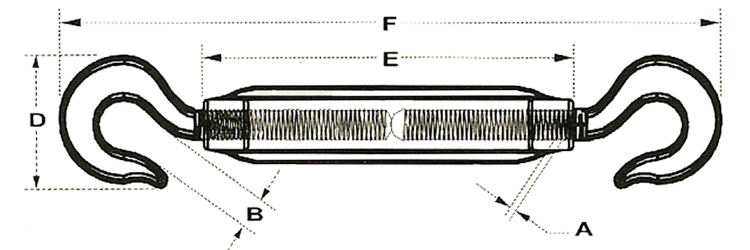

TENSOR 2 GANCHOS

REFERENCIA	DIMENSION "A" mm	DIMENSION "B" mm	DIMENSION "D" mm	DIMENSION "E" mm	DIMENSION MINIMA "F" mm	DIMENSION MAXIMO "F" mm	MAXIMO LIMITE DE CARGA Kgs	PESO Kgs	NOTA
TBHH0601	M5	6	17	80	124	187	25	0'080
TBHH0602	M6	8	22	80	134	197	45	0'125
TBHH0603	M8	10	30	105	181	262	95	0'200
TBHH0604	M10	12.5	36	125	211	303	140	0'300
TBHH0605	M11	12.5	36	135	231	330	165	0'400
TBHH0606	M12	17.5	56	140	262	368	300	0'500
TBHH0607	M14	21	66	170	312	442	420	0'600
TBHH0608	M16	24	77	190	354	499	570	0'700
TBHH0609	M18	27	85	205	388	542	700	0'800
TBHH0610	M20	30	95	220	424	588	900	0'900
TBHH0611	M22	34	106	240	466	645	1100	1'000
TBHH0612	M24	36	114	260	504	696	1300	1'100
